YSSPD:6 Type Silent Driver

  • Minimum Order Quantity :1
  • Warranty :1 Year
  • Location : Pune
  • Port of Dispatch : Pune
  • View Data Sheet :    View Datasheet

Description :

  • YSSPD:6 is high Performance and Silent micro-stepping Driver.
  • It operates on pure Sinusoidal Current control Principle. It generates low motor noise and Heat.
  • This driver eliminates problems related to motor Vibration, Resonance, even sound of the motor compare to traditional drivers.
  • This drivers offers smooth operation even at low speed. It can deliver maximum torque.

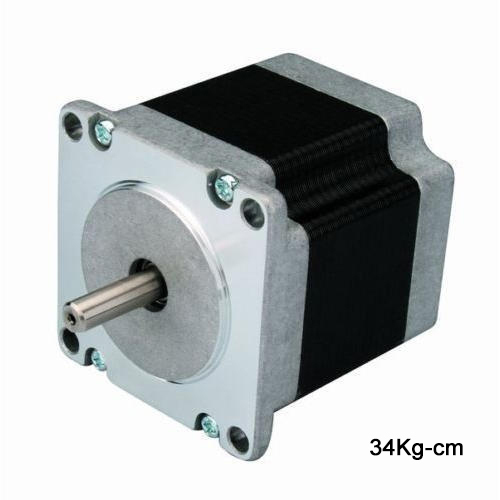

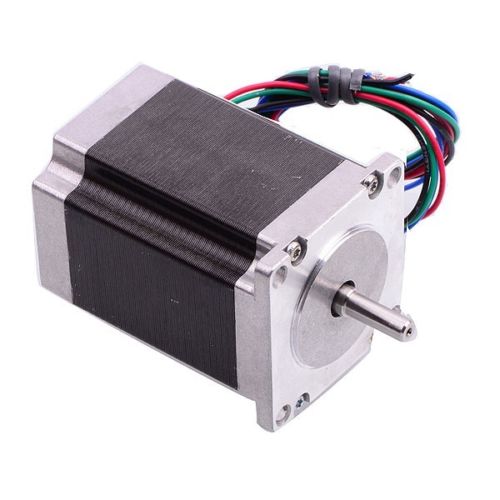

  • It is most suitable  for 20-300 Kgcm Stepper Motor.

Features:
* Smooth and Silent operation of motor.
* PPR Setting selectable with 400, 800, 1000, 1600, 3200, 4000, 5000, 6400, 8000, 10000, 16000, 20000, 32000 and 51200.
* Supply Voltage : 40-120 VAC or 60-150 VDC.
* 2.8 to 6 Amp. per phase selectable motor currents.
* Clock, Direction and Disable signals (Optically isolated).
* Plug and Play Connectors.
* Auto Current cutback to 50% in idel condition.
* Over Current, Short Circuit, Under/Over voltage Protections.
* Purely indigenous design with long service commitment.
* Compact Size - 140(h)x50(w)x118(d) mm.
